SALES INFORMATIONS
| Price unit | 1 |
| Packing unit | 1 |
| Unit of measure | PC |
| minimum order quantity | 1 |

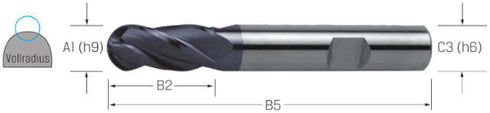

Technical data
| Material: | Solid carbide |
| DIN standard: | DIN 6527 |
| Coating [H5/COATN]: | ALCRONA |
| [A1] Cutting diameter mm: | 10 |
| Cutter type: | Type N |
| Cutting edge shape: | Sphere |
| [G4] Profile radius mm: | 0.00 |
| Helix angle: | 30 ° |
| Manufacturer item number shop: | 178415 10,00 |
| [G5] Profile angle: | 5 |
| Center cut: | true |
| Relative length: | long |
| Full radius mm: | 5 |
| [B3/B4/B5] Total length mm: | 72 |
| [C12] Recording form, machine side: | 6535 HB shaft |
| [B2/B6] Cutting length max. mm: | 22.00 |
| [A5] Neck diameter mm: | 0.00 |
| [C3] Mounting diameter, machine side mm: | 10 |
| fz mm/tooth: | 0,038-0,053 |
